Detachable Towbar for Motorhome Fiat Ducato (from 06/2006) – without factory preparation

Description

Detachable Towbar for Motorhome Fiat Ducato (from 06/2006) – without factory preparation

Dedicated for motorhome conversions – manufacturer masterHAK

We are a manufacturer of towbars for motorhomes.
This model has been designed for vehicles without factory preparation for towbar installation.

This is not a standard van towbar.
It is a complete solution adapted to motorhome construction.

Vehicle compatibility

• Fiat Ducato from 06/2006
• Citroën Jumper
• Peugeot Boxer
• motorhomes: integrated, semi-integrated and alcove
• vehicles without factory towbar preparation

What you gain after installation

• possibility to install a bike carrier
• possibility to tow a trailer or car transporter
• transport of additional equipment
• increased functionality of the motorhome during travel

The towbar allows full use of the vehicle despite the lack of factory preparation.

Scope of delivery

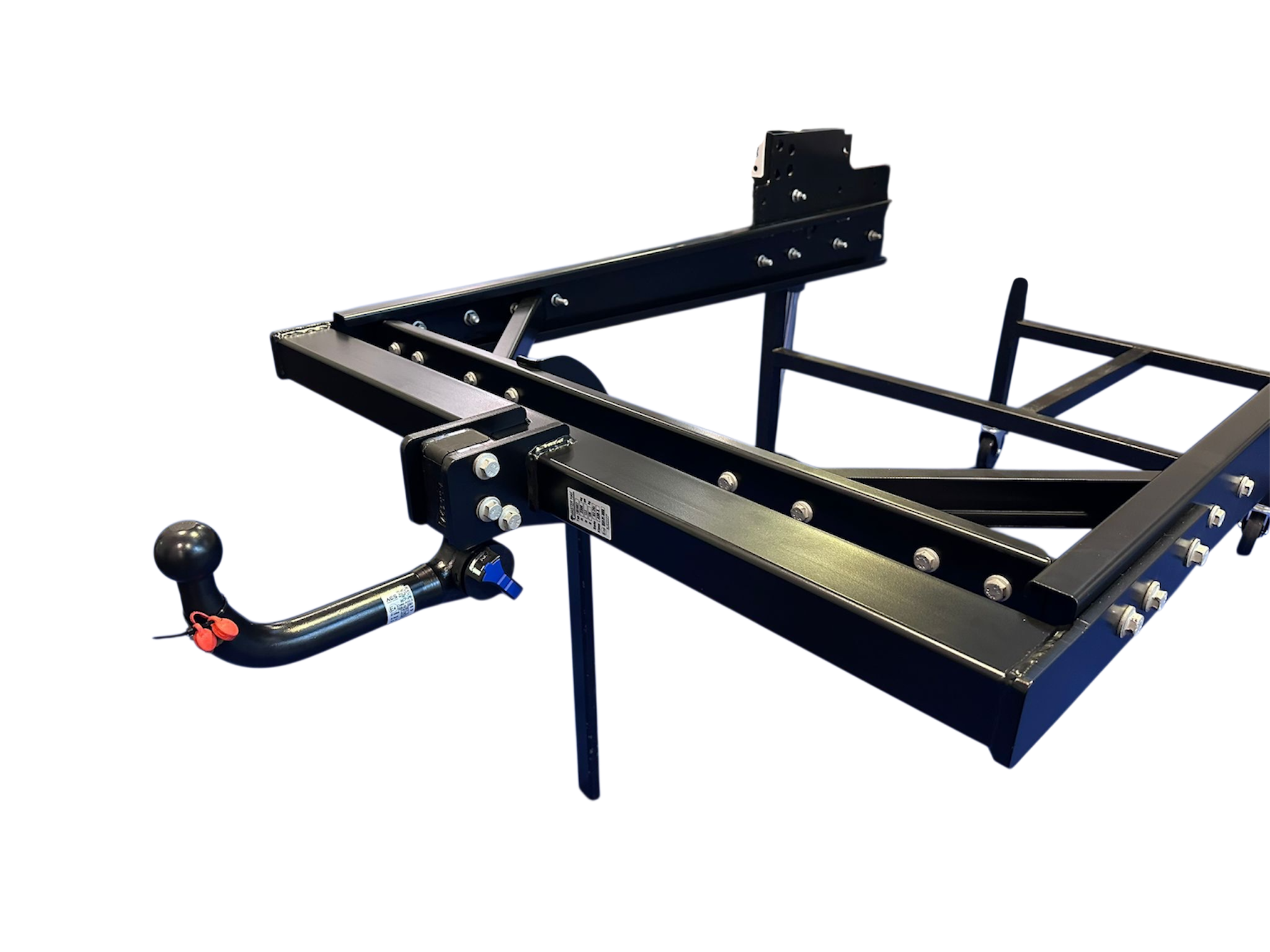

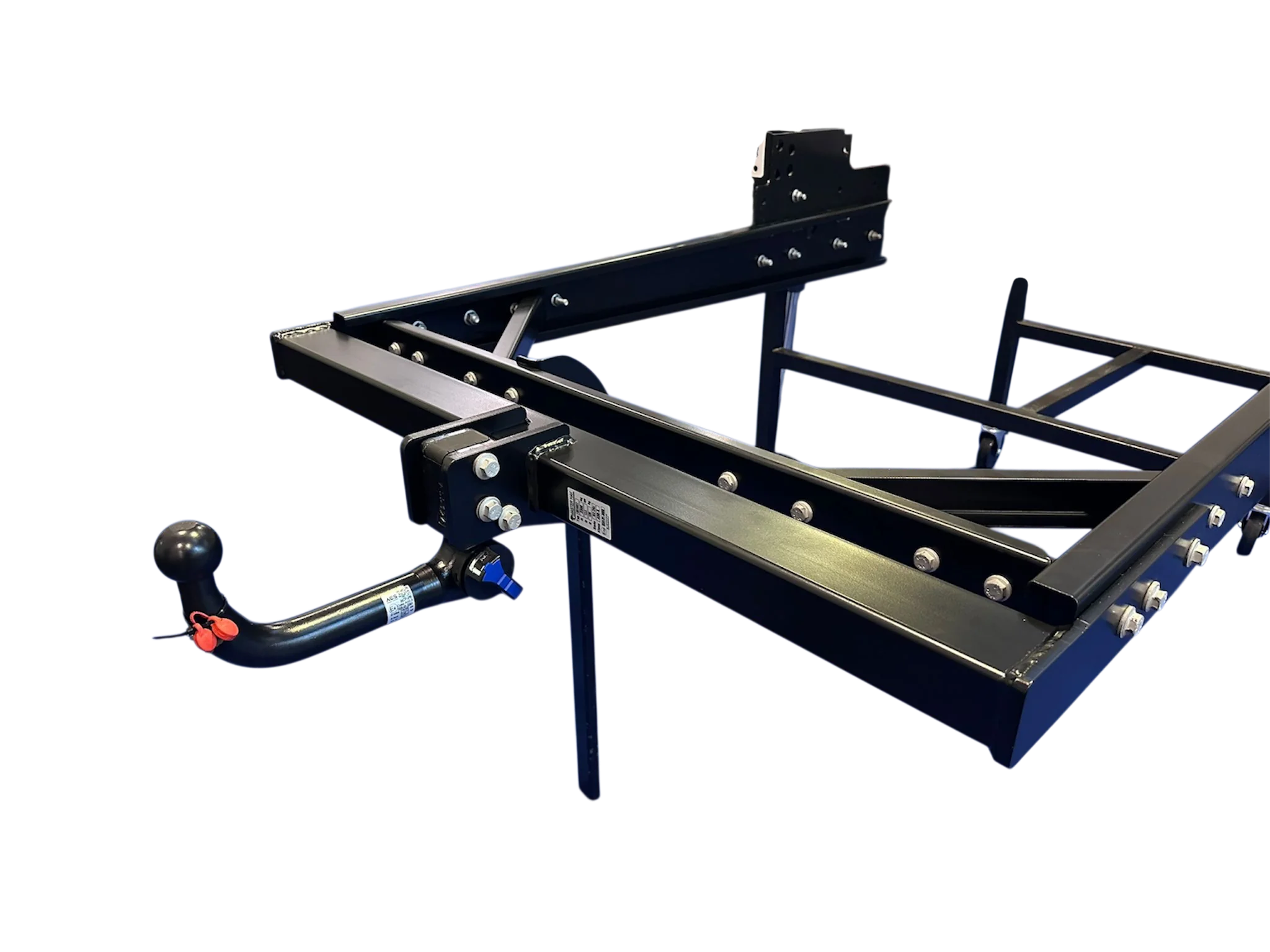

Complete installation kit:

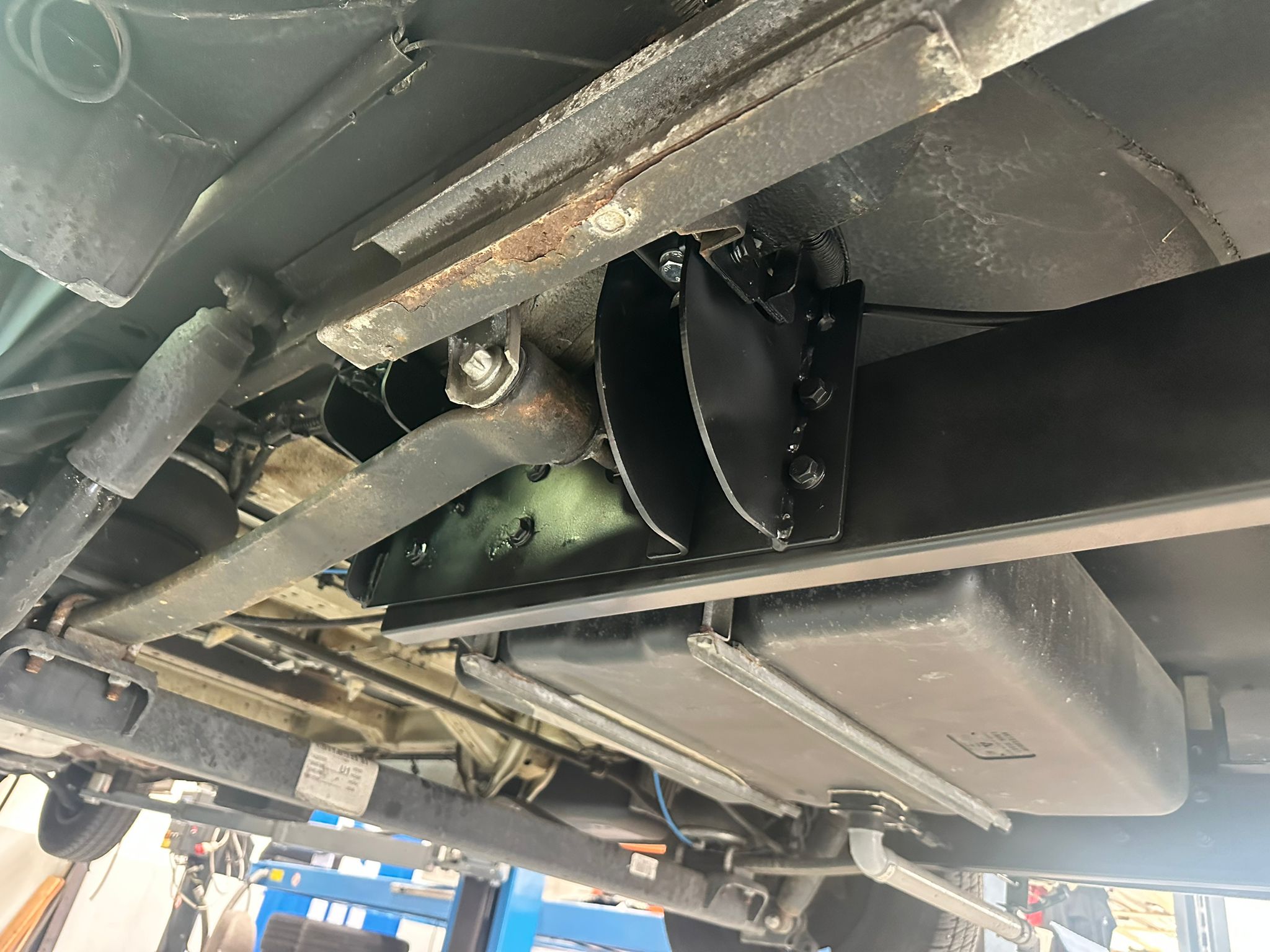

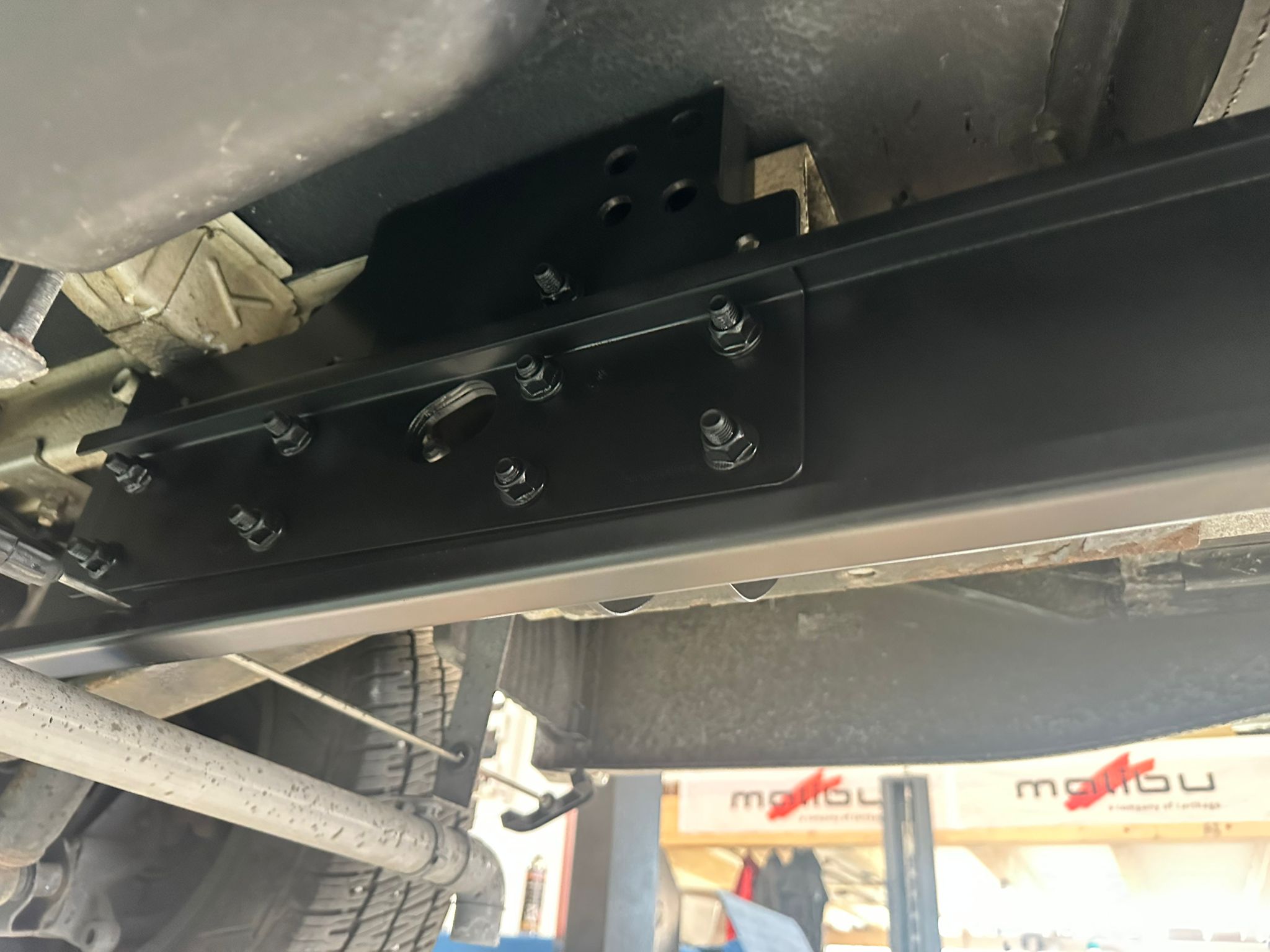

• mounting adapters
• chassis extension
• detachable crossbar
• towball

The kit is prepared for a specific vehicle configuration. No modification required during installation.

Electrical wiring kits are available as optional equipment.

New design features

Prepared for leveling system

Adapters allow installation of a hydraulic leveling system.

It is possible to use simultaneously:

• towbar
• hydraulic leveling supports (e.g. AMPLO)

No modification of the structure is required.

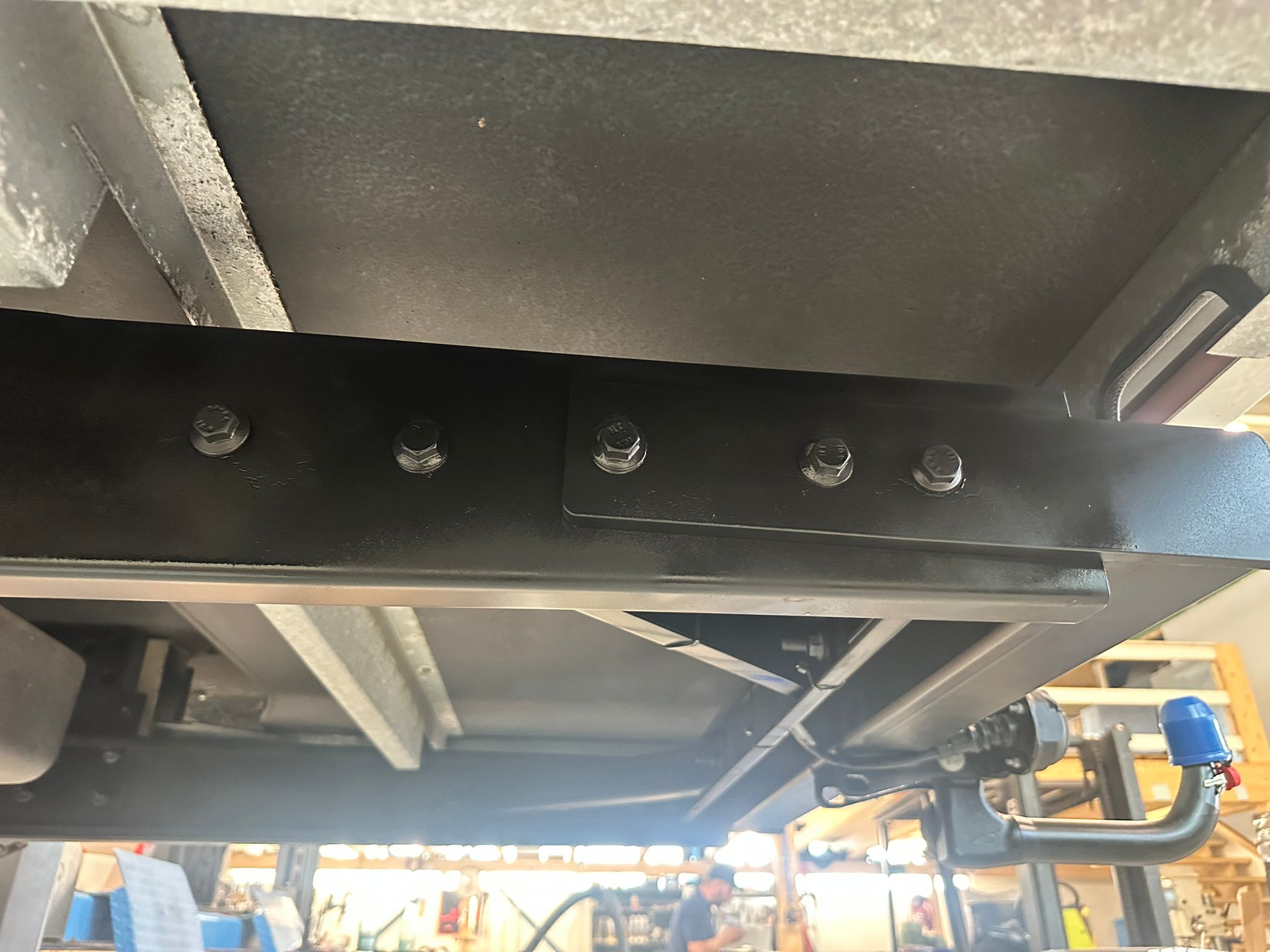

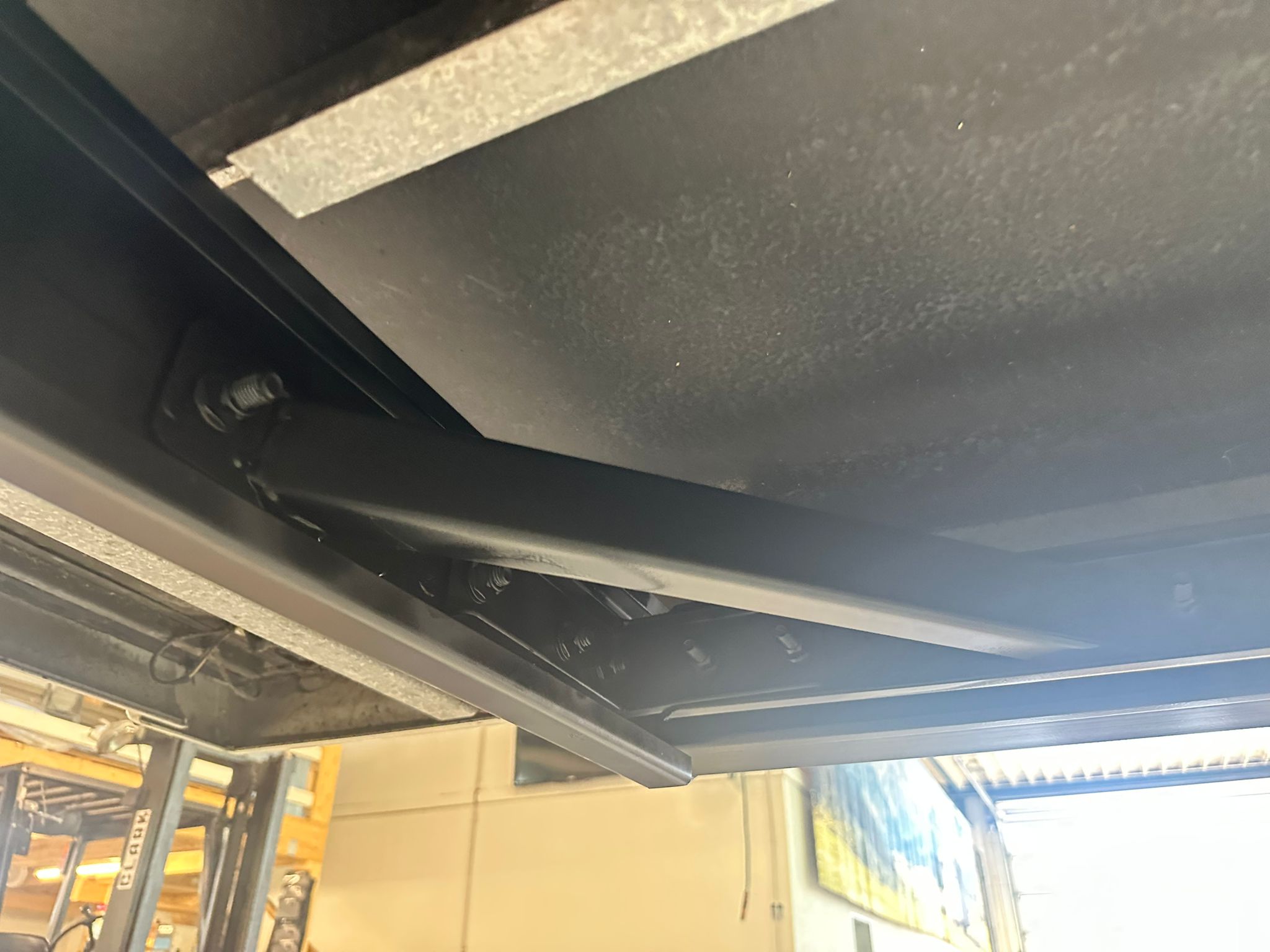

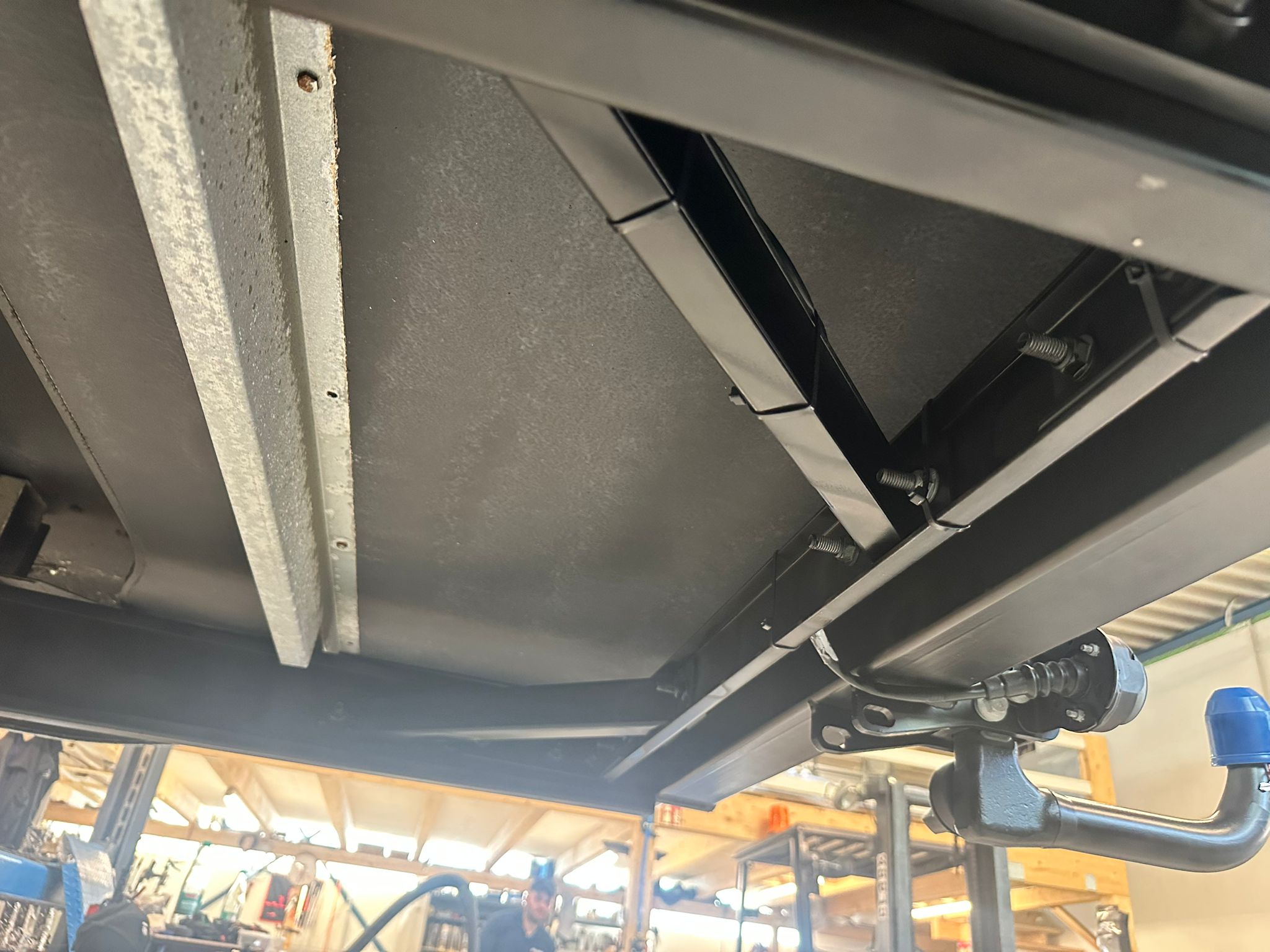

Closed extension structure

The extension includes its own cross member and independent reinforcements.

After removing the crossbar:

• the structure remains rigid
• it can be used for mounting a carrier system

This improves overall stability and functionality.

Technical data

• homologation for vehicles up to 4.5 t GVW
• D-value: 13.6 kN

Permissible towing capacity:

• up to 2300 kg for vehicles with 3.5 t GVW
• up to 2000 kg for vehicles with 4.5 t GVW

Vertical load:

• up to 120 kg when towing a trailer
• up to 70 kg when using bike carriers

Parameters are based on homologation and real operating conditions.

Applications

• bike carriers
• cargo and camping trailers
• transport of boats or jet skis
• car transport trailers

Homologation and safety

The construction has been tested as a complete system.
Homologation covers the entire set – adapters, extension and crossbar.

This ensures compliance and safe operation.

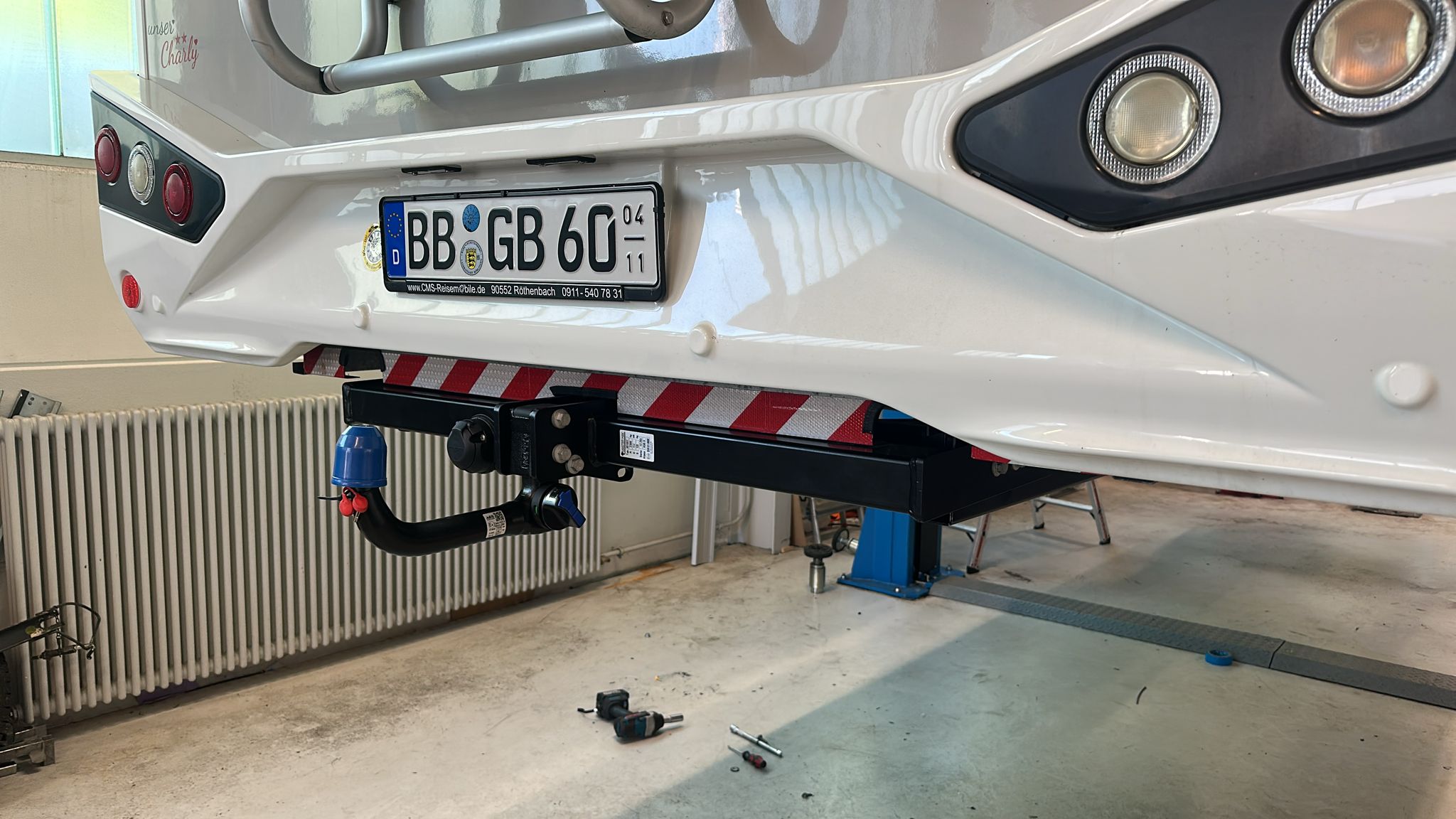

Installation

• no drilling
• no welding
• vehicle-specific components
• in most cases no bumper modification required

In some motorhome designs, minor trimming of the bumper may be required depending on its position relative to the garage floor.

Is this towbar suitable for your vehicle

YES if:

• your motorhome has no factory towbar preparation
• there is no tank at the end of the chassis
• the vehicle has a standard conversion

NO if:

• there is a tank at the end of the chassis
• the vehicle has RA030i preparation
• AL-KO chassis or other specific configuration

Before ordering

Check:

• rear overhang length (max. 2530 mm)
• layout of components under the vehicle
• type of body construction

It is recommended to provide a photo of the chassis rear section.

Model selection

• version with rear tank – model 371600
• version with RA030i preparation – model 381400
• AL-KO chassis – model 312807

Correct model selection is essential for proper installation.

Individual configuration

Each set is prepared for a specific vehicle configuration.
This ensures installation without modifications.

masterHAK – manufacturer

We design towbars for motorhomes and special vehicle applications.
We consider vehicle structure and real operating conditions.

We create solutions that work in practice.

Summary

This model is designed for motorhomes without factory towbar preparation.

If you want to:

• install a towbar without modifications
• tow a trailer or use a carrier
• integrate a leveling system

this is the correct solution.

You buy directly from the manufacturer.
Install once and use without issues.
